2 Axis 4 Frame Multiple Spectral Electro Optic Camera Sensor 120kg
TS508D Gyro Stabilized Electro Optic System
The TS508D is a gyro-stabilized electro-optic system featuring EO sensor, three IR sensors (cooled MWIR sensor, SWIR, and black & white NIR), 30km laser rangefinder, and over 10km laser irradiation distance. With 360° continuous rotation servo motor and total weight of approximately 80kg, this airborne electro-optical system offers lightweight design, mature high-stabilization accuracy pan-tilt servo system technology, and can be assembled on UAVs, ships, and vehicles to meet maritime and aerial operational needs.
System Functions
- Provide infrared video and image for detection area
- High precision visual axis stabilization function
- Capability of detection and recognition for ground targets
- Support search, tracking, lock, guiding, and other working modes
- Character overlay, custom and display functions
- Self-check and fault diagnosis function
- Target position, laser ranging and laser irradiation capabilities
- Support manual tracking, geographic tracking, automatic tracking and search tracking
- Target laser ranging with real-time angular line of sight, angular speed and range information
- Laser instructions for laser-guided weapons with user-defined precise frequency codes
Technical Specifications
| Component |
Parameter |
Value |
| EO Sensor |
Wavelength |
0.486μm～0.656μm |
| Resolution |
1080p |
| FOV |
30.6º*17.2º～1.53º*0.86º |
| Detection Distance |
≥12km |
| Identification Distance |
≥7km |
|
| IR Sensors |
IR Type |
MWIR | SWIR | NIR (Black & White) |
| Wavelength |
3.7μm～4.8μm | 0.95μm～1.7μm | 0.65μm～0.9μm |
| Resolution |
640*512 | 640*512 | 1920*1080 |
| Guiding FOV |
30°*24° | *** | - |
| Large FOV |
7.44°*6° | 7.44°*6° | - |
| Middle FOV |
1.86°*1.5° | 1.86°*1.5° | - |
| Small FOV |
0.47°*0.37° | 0.45°*0.36° | 0.5º*0.5º (30.6º*17.2º～1.53º*0.86º continue zoom) |
| Detection Distance |
≥30km | ≥30km | ≥45km |
| Identification Distance |
≥20km | ≥20km | ≥30km |
|
| Laser Rangefinder |
Wavelength |
1064nm |
| Laser Energy |
≥80mJ |
| Ranging Distance |
300m～30km |
| Ranging Accuracy |
＜±2m |
| Laser Designator |
≥10km |
| Laser System |
Laser Irradiation Code |
8 groups (Adjust and expand optional) |
|
| Light Spot Searching & Tracking |
Wavelength |
1064nm |
| Detector |
Four-quadrant |
| FOV |
≥4° |
| Searching & Tracking Distance |
≥10km |
| Accuracy |
≤1mrad |
| Servo System |
Rotating Limits |
360° continuous Pan, Pitch: -120° ~ +45° |
| Stabilization Accuracy |
Line of sight stabilization accuracy ≤10μrad (1σ) |
| Max. Angular Speed |
≥70°/s |
| Geo-positioning Coordinate Accuracy |
≤20m/10km |
| Max. Angular Acceleration |
≥60°/s² |
|
| Interface |
Control Interface |
1*RS422 (TTL optional) |
| Signal & Image Output |
4*HDSDI |
Mechanical Drawing
Technical diagrams available upon request.
Company Profile
Chengdu HONPHO Technology Co., Ltd. was established in March 2018 as a national high-tech enterprise focusing on R&D, intelligent manufacturing and service of high-end photoelectric systems. HONPHO's main products are spherical photoelectric payload systems, widely deployed in UAVs, unmanned ships, unmanned vehicles, helicopters and low-speed fixed-wing aircraft, especially for reconnaissance and strike UAVs and armed helicopters.
HONPHO operates from nearly 5,000 square meters of space to meet R&D, production, operation and office needs. With over 100 employees including 2 national senior experts, 3 doctors, 21 masters, 10 technical experts with senior titles and 4 researchers, the company has won more than 10 prizes for national and national defense science and technology progress, and holds over 20 intellectual property rights. HONPHO is committed to becoming a world-renowned photoelectric system high-tech enterprise.
HONPHO headquarters and R&D center

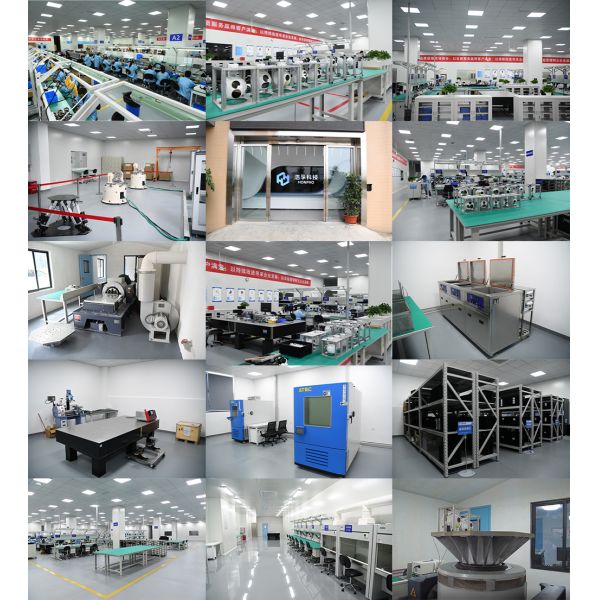

HONPHO Production Base
